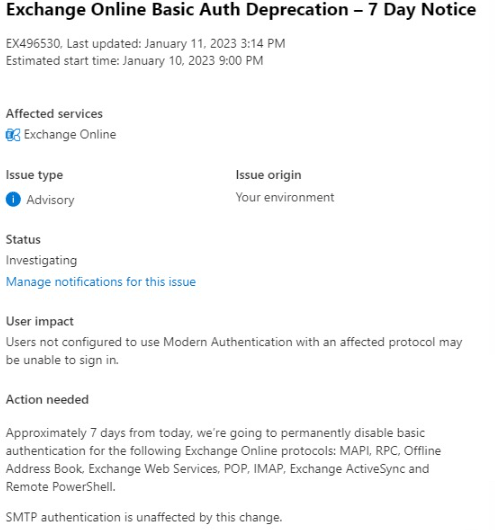

In a few days the basic authentication mode (which could be forced through the portal) will be unavailable. To allow e.g. mail sending from pop3,imap powershell. The advanced authentication mode OAuth2 must be used.

Quick setup of modern authentication

Step 1, create app Azure

Create an application in Microsoft Azure

https://portal.azure.com/#view/Microsoft_AAD_RegisteredApps/CreateApplicationBlade/quickStartType~/null/isMSAApp~/false

Create a name for identification

Once the application is created. Save the following values (we will need them later)

Step 2, Add permission APP

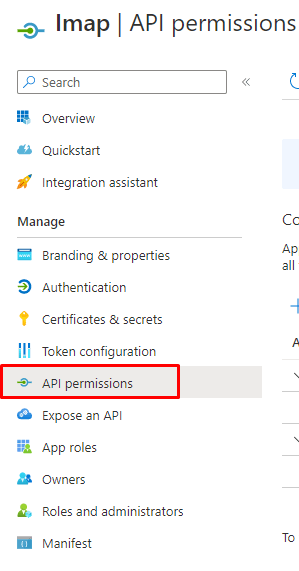

Once the application is created. In the left menu we choose «API permissions» and add permision «Office 365 Exchange Online» – «Applications permisions» – IMAP AccessAsApp

Do not forget to «Grant admin to consent«

Step 3, Add secret key

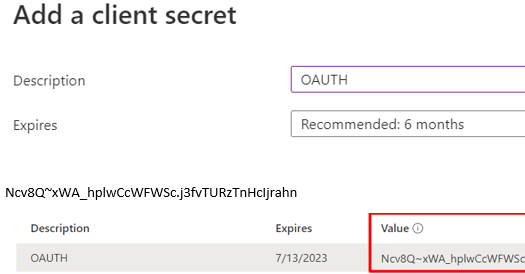

We must create a secret key, which we will use in the future in our applications that will send mail. Copy the value of the key (only available on creation) and save it

The previous steps allow us to have an application with its permissions and secret key, for sending mail (in this example imap) from any application.

Step 4, add permission account

In this step, we will assign the necessary permissions so that only one account can make use of the application and send mail. To generate the permissions, we need 2 prerequisites module powershell azure, and module exchangeonline

Installation of powershell modules:

Install-Module azureadpreview

Install-Module -Name ExchangeOnlineManagement

Once installed, we connect to our azure

connect-azuread -TenantId bd927bbe-697a-427c-99f1-fedc74ffde18

we validate our application andstore the properties in a variable

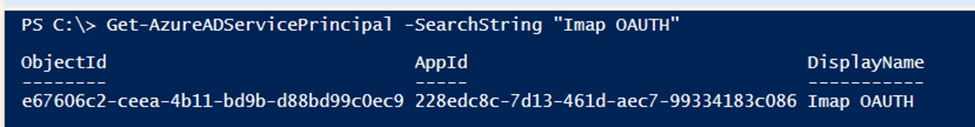

Get-AzureADServicePrincipal -SearchString «Imap OAUTH»

$APPIMAP= Get-AzureADServicePrincipal -SearchString «Imap OAUTH»

We connect to exchangeonline

connect-exchangeonline

We create a new service associated with our application

New-ServicePrincipal -AppId $APPIMAP.appid -ServiceId $APPIMAP.objectid -DisplayName «Service IMAP»

And we add the permission for a previously created account

add-mailboxpermission -identity appimap@contoso.com -user $APPIMAP.objectid -accessrights fullaccess

Step 5, Test

To quickly validate our application and mailing. We will make use of a powershell previously created

https://github.com/DanijelkMSFT/ThisandThat/blob/main/Get-IMAPAccessToken.ps1

The required parameters are the 3 previously saved values. TenantID – ClientID – Secretkey

.\Get-IMAPAccessToken.ps1 -tenantID «b236e9b0-cb9d-4345-9fa6-1ec7dbbe7b6d» -clientId «15af54a3-1b39-4b09-911a-61668aa61dc2» -clientsecret «6tJ8Q~lBF6VZZx4vmRUj-4jv15r-5e8p9bhJSbte» -targetMailbox «appimap@contoso.com» -Verbose

If there are no errors. We will have a successful exit
